I have been doing a number of tests, on the D800E, to determine the micro focus settings for various lenses. I have used both FocusTune and FoCal software for these tests. The results are presented below.
All tests were performed at a distance of approx. 50X Focal Length.

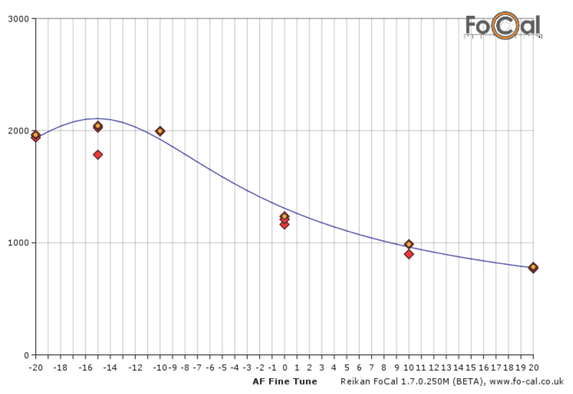

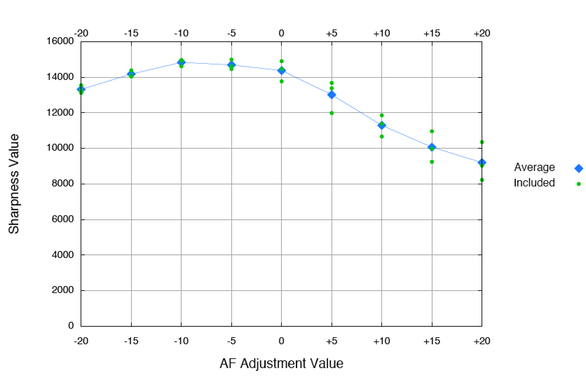

Nikon 14-24mm, f/2.8 @f/2.8, 14mm
FocusTune, recommended -5
FoCal, recommended -7

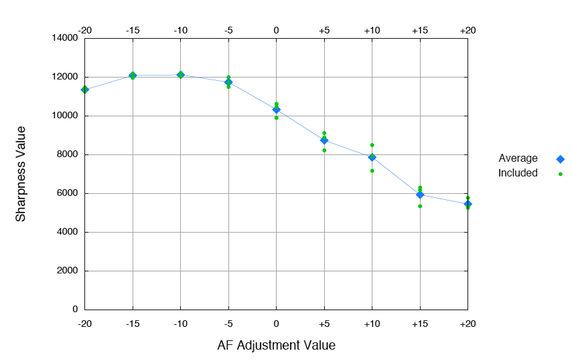

Nikon 14-24mm, f/2.8 @f/2.8, 24mm
FocusTune, recommended -10
FoCal, recommended -15
Based on these results, I picked -10 as a compromise MFA

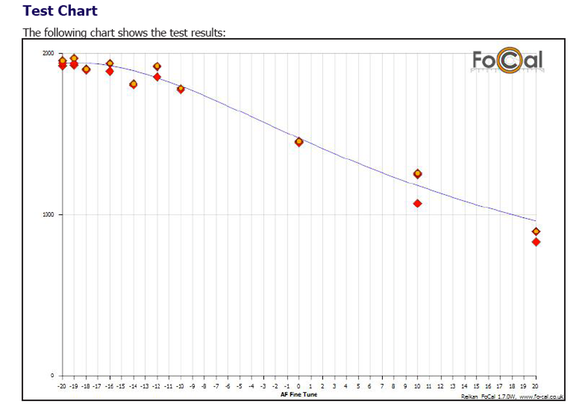

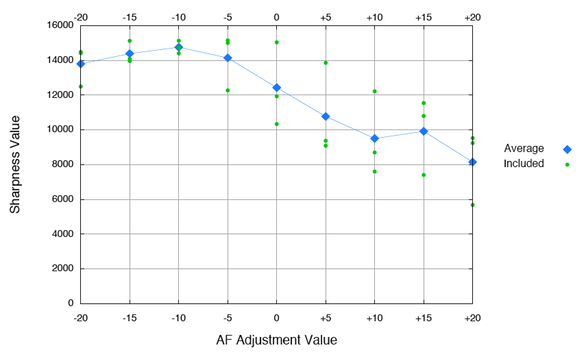

Nikon 24-70mm f/2.8 @f/2.8 24mm
FocusTune, recommended -5
FoCal, recommended -17
Big difference!

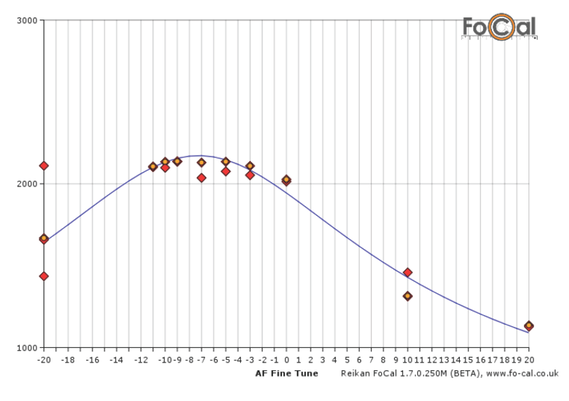

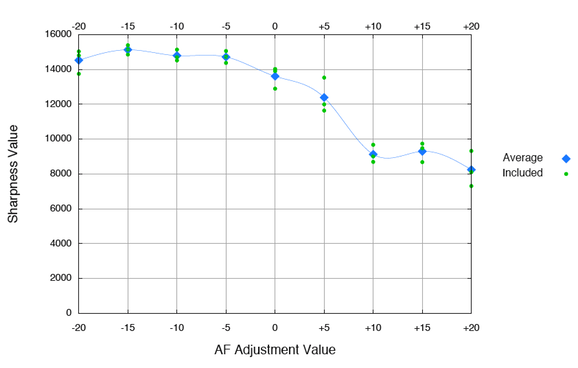

Nikon 24-70mm f/2.8 @f/2.8 70mm
FocusTune, recommended -15
FoCal, recommended -19
Based on these (variable) results, I picked -17 - not happy, may test again (maybe -10 is the better compromise?)

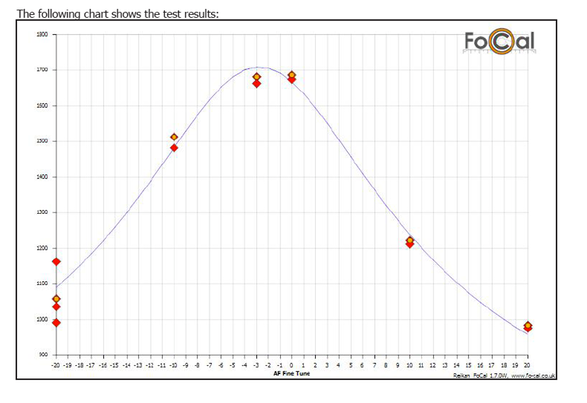

Nikon 50mm f/1.8 @f/1.8
FocusTune, recommended 0
FoCal, recommended -3
Based on these results, I picked -3
I also did the test on my 70-200mm f/2.8 @ f/2.8 using FocusTune
Nikon 70-200mm f/2.8 @f/2.8, 70mm. recommended -10
Nikon 70-200mm f/2.8 @f/2.8 200mm, recommended -10
based on these results, I picked -10
